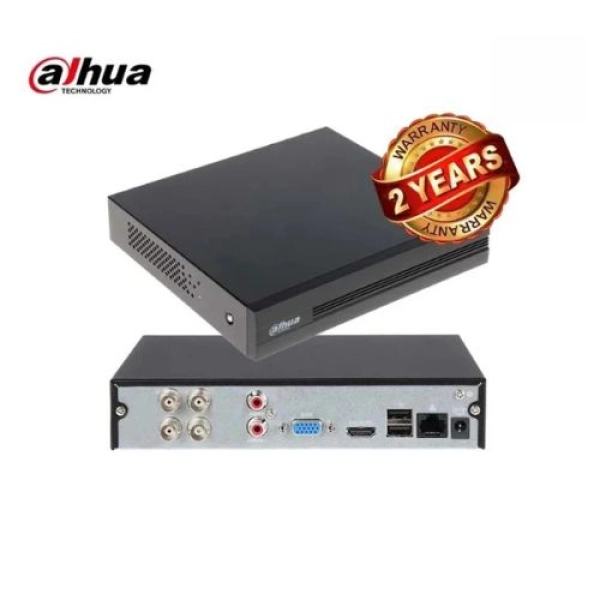

Dahua 4 Channel DVR 2MP Penta Brid
Dahua 4 Channel DVR 2MP Penta Brid
Dahua 4 Channel DVR
Dahua 4 Channel DVR 2MP Penta Brid
Dahua 4 Channel DVR 2MP Penta Brid
Dahua 4 Channel DVR 2MP Penta Brid
Dahua 4 Channel DVR
Dahua 4 Channel DVR 2MP Penta Brid
,

Dahua 4 Channel DVR 2MP Penta Brid

  • Dahua 4 Channel DVR Rs10,950.00 Price in Sri Lanka.
  • 2 Years Warranty.
  • H.265+/H.265 dual-stream video compression
  •  Supports Full channel AI-Coding
  •  Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  •  Max 5 channels IP camera inputs, each channel up to 2MP; Max 20 Mbps incoming bandwidth
  •  Up to 4 channels video stream ( analog channel ) SMD Plus

LKR.10,950.00 LKR.17,500.00

or 3 X LKR. 3,650.00 with Koko Koko

Dahua 4 Channel DVR 2MP Penta Brid

Dahua 4 Channel DVR Features

  • 4 Channel
  • 2 MP 1080P Videos



Specifications Dahua 4 Channel DVR

System of XVR1B04-I

Main ProcessorEmbedded processor
Operating SystemEmbedded linux

SMD Plus

Performance4 channels
AI SearchSearch by target classification (Human, Vehicle)

Video and Audio

Analog Camera Input4 channels, BNC
HDCVI Camera Input1080p@ 25/30 fps, 720p@25/30/50/60 fps
AHD Camera Input1080p@ 25/30 fps, 720p@ 25/30 fps
TVI Camera Input1080p@25/30 fps, 720p@25/30 fps
CVBS Camera InputPAL/NTSC
IP Camera Input4+1 channels, each channel up to 2MP
Audio In/Out1/1, RCA
Two-way TalkReuse audio in/out, RCA
Recording
CompressionAI Coding/H.265+/H.265/H.264+/H.264
Resolution1080N; 720p; 960H; D1; CIF
Record RateMain Stream:

All channels 1080N/720P/960H/D1/CIF/(1~25/30fps)

Sub stream:

CIF (1~15 fps)

Bit Rate32 kbps–4096 kbps per channel
Record ModeManual; Schedule (General, Continuous); MD (Video

detection: Motion Detection, Video Loss, Tampering);

Alarm; Stop

Record Interval1 min– 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
Audio CompressionG.711A; G.711U; PCM
Audio Sample Rate8 KHz, 16 bit per channel
Audio Bit Rate64 kbps per channel
Display
Interface1 HDMI; 1 VGA
Resolution1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen DisplayWhen IP extension mode not enabled: 1/4

When IP extension mode enabled: 1/4/6

OSDCamera title; Time; Video loss; Camera lock; Motion detection; Recording
Network
Interface1 RJ-45 Port (100 Mbps)
Network ProtocolHTTP; HTTPS; TCP/IP; IPv4/IPv6; 3G/4G; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access128 users
Smart PhoneiPhone; iPad; Android
InteroperabilityONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm inputN/A
Relay OutputN/A
Playback and Backup
Playback1/4
Search ModeTime/Date; Alarm; MD and Exact Search (accurate to second)
Playback FunctionPlay; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom
Backup ModeUSB Device/Network

Storage

Internal HDD1 SATA port, up to 6 TB capacity
SATAN/A

Auxiliary Interface Dahua 4 Channel DVR

USB2 USB ports (USB 2.0)
RS485N/A
RS232N/A

Electrical

Power SupplyDC 12 V/1.5 A
Power Consumption

(Without HDD)

< 7 W

Construction

DimensionsCooper 1U, 198 mm × 202.9 mm × 41.5 mm

(7.81” × 7.99” × 1.63”)

Net Weight

(without Hard disk)

0.57 kg (1.25 lb)
Gross Weight1.08 kg (2.38 lb)
InstallationDesktop installation

Environmental Dahua 4 Channel DVR

Operating Conditions–10 °C to +45 °C (+14 °F to +113 °F), 0%–90% (RH)
Storage Conditions–20 °C to +70 °C (–4 °F to +158 °F), 0%–90% (RH)

Dahua 4 Channel DVR 2MP Penta Brid

Dahual Prices in Sri Lanka

4 Channel DVR  Rs 10,950.00

8 Channel DVR Price Rs 12,950.00
