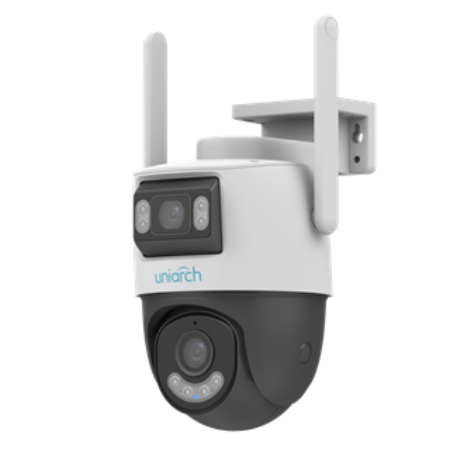

6MP Uniarch p2s dual Lense Wifi Camera
Key Features
Uniarch p2s dual Fixed camera and PTZ camera integration, dual channels with one IP, look at overall situation and consider details at
at the same time
Ultra 265, H.265, H.264
Support digital WDR (Wide Dynamic Range)
Built in Mic Speaker, support two way audio, offer better interaction
Support sound and light warning, make warning and alarming more noticeable
Smart IR, up to 30 m (98 ft) IR and 10m (33ft) warm light distance, suitable for more scenes
IR warm light illumination to deal with different scenes and achieve full color illumination
Uniarch p2s dual Supports 512 GB Micro SD card
Wi-Fi connection and easy installation
IP66 ingress protection
Uniarch p2s dual Specifications
| Channel | Panorama | Detail |
| Camera Uniarch p2s dual | ||
| Sensor | 1/2.8″ CMOS | |
| Min. Illumination | Color: 0.003 lux (F1.6, AGC ON) 0 lux with IR | |
| Day/Night | IR‑cut filter with auto switch (ICR) | |
| Shutter | Auto/Manual, 1 ~ 1/100000s | |
| WDR | DWDR | |
| S/N | >52 dB | |
| Lens | ||
| Lens Type | Fixed | |
| Digital Zoom | N/A | 4X |
| Iris | F1.6 | |
| Field of View (H) | 113.4° | 91.5° |
| Field of View (V) | 59.4° | 48.1° |
| Field of View (D) | 121.7° | 96.3° |
| DORI | ||
| DORI Distance (Lens) | 2.8mm | 4.0mm |
| DORI Distance (Detect) | 51.4 (168.7 ft) | 73.5 (241.0 ft) |
| DORI Distance (Observe) | 20.6 (67.5ft) | 29.4 (96.4 ft) |
| DORI Distance (Recognize) | 10.3 (33.7ft) | 14.7 (48.2 ft) |
| DORI Distance (Identify) | 5.1 (16.9ft) | 7.3 (24.1ft) |
| Illuminator | ||
| Illumination Distance (IR) | 10 m (32.8 ft) | 30 m (98.4 ft) |
| Illumination Distance (Warm Light) | 10 m (32.8 ft) | 30 m (98.4 ft) |
| Wavelength | 850 nm | |
| Light On/Off Control | Auto/Manual | |
| Video | ||
| Video Compression | Ultra 265, H.265, H.264 | |
| Frame Rate – Main Stream | 3MP (2304*1296), Max 15fps; 2MP (1920*1080), Max 15fps; 720P (1280*720), Max 15fps; | |
| Frame Rate – Sub Stream | 640*360,Max 15fps; 2CIF(704*288), Max 15fps; CIF(352*288), Max 15fps; | |
| Video Bit Rate | 128 Kbps to 2048 Kbps | |
| ROI | Up to 8 areas | |
| Video Stream | Dual Streams | |
| OSD | Up to 4 OSDs | |
| Privacy Mask | Support (Only NVR) | |
| Image | ||
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |
| Digital Noise Reduction | 2D/3D DNR | |
| Smart IR | Support | |
| Flip | Normal, Flip Vertical, Flip Horizontal, 180° | |
| HLC | N/A | |
| BLC | N/A | |
| Defog | Digital Defog | |
| Events Uniarch p2s dual | ||
| Basic Detection | Motion Detection, Ultra Motion Detection (based on Human Body and Vehicle Detection), Tampering Alarm, Audio Detection | |
| General Function | IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication | |
| Audio | ||
| Audio Compression | G.711U, G.711A | |
| Audio Bitrate | 64 Kbps | |
| Two-way Audio | Support | |
| Suppression | Support | |
| Sampling Rate | 8 kHz | |
| Storage | ||
| Edge Storage | Micro SD, up to 512 GB | |
| Network Storage | ANR | |
| Network | ||
| Wi-Fi | 2.4G Wi‑Fi (IEEE802.11b/g/n/ax), built‑in antenna | |
| Protocols | IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP, ICMP, ARP, UPnP | |
| Compatible Integration | API | |
| Client | Uniarch Client, Uniarch App | |
| Web Browser | Plug‑in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | |
| Wi-Fi | ||
| Wireless Standards | IEEE 802.11b/g/n/ax | |
| Frequency Range | 2.4 GHz to 2.4835 GHz | |
| Channel Bandwidth | 20/40 MHz Support | |
| Modulation Mode | 802.11b: CCK 802.11g/n: OFDM 802.11ax: OFDMA | |
| Wi-Fi Security | 64/128‑bit WEP, WPA‑PSK/WPA2‑PSK | |
| Transmit Power | 802.11b: 17±1.5 dBm@11 Mbps802.11g: 16±1.5 dBm@54 Mbps802.11n: 16±1.5 dBm@MCS7802.11ax: 16±1.5 dBm@MCS9 | |
| Receive Sensitivity | 802.11b: ‑76 dBm@11 Mbps (Typical) 802.11g: ‑65 dBm@54Mbps (Typical) 802.11n: ‑61 dBm@MCS7, HT40 (Typical) 802.11ax: ‑54 dBm@MCS9, HE40 (Typical) | |
| Transmission Rate | 802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps802.11ax: up to 270 Mbps | |
| PTZ | ||
| Pan Range | -150° ~ 150° | 0° ~ 350° |
| Pan Speed | N/A | 1°/s ~ 40°/s Preset speed: 40°/s |
| Uniarch p2s dual Tilt Range | -5° ~ 30° | 0° ~ 90° |
| Tilt Speed | N/A | 1°/s ~ 30°/s Preset speed: 30°/s |
| Number of Presets | 20 | |
| Interface | ||
| Built-in Mic | Support | |
| Built-in Speaker | Support | |
| WIFI | Support | |
| Network | 1 × RJ45 10M/100M Base-TX Ethernet | |
| Video Output | N/A | |
| Certification | ||
| EMC | CE EMC (EN 55032,EN 61000‑3‑3,EN IEC 61000‑3‑2,EN 50130) FCC (FCC 47 CFR part15 B) | |
| RF | FCC ID (FCC CFR 47 part15 C) CE RED (EN 301 489‑1, EN 301 489‑17, EN 300 328, EN 62311) | |
| Safety | CE LVD (EN 62368-1) | |
| Environment | CE‑RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU) | |
| Protection | IP66 (IEC 60529) | |
| General Uniarch p2s dual | ||
| Power | DC 12V ± 25% | |
| Power Consumption | MAX 10.1W | |
| Power Interface | Ø5.5 mm coaxial power plug | |
| Dimensions | Φ117mm*117mm*202mm (Φ4.6”x 4.6”x 7.9”) | |
| Weight | 0.62kg (1.36lb) | |
| Working Environment | ‑30°C ~ 60°C (‑22°F to 140°F), Humidity:≤95% RH(non‑condensing) | |
| Storage Environment | ‑30°C ~ 60°C (‑22°F to 140°F), Humidity:≤95% RH(non‑condensing) | |
| Surge Protection | 4 KV | |
| Reset Button | Support | |
| LED Indicator | 1, red/blue | |
